The light distribution pattern of solar LED light poles plays a crucial role in their overall performance and suitability for various applications. As a solar LED light pole supplier, I've witnessed firsthand how different light distribution patterns can significantly impact the effectiveness and efficiency of lighting solutions. In this blog post, I'll delve into what light distribution patterns are, the common types found in solar LED light poles, and their implications for different scenarios.
Understanding Light Distribution Patterns
Light distribution pattern refers to how light is spread and projected from a lighting fixture. It describes the way light intensity varies across a given area at a certain distance from the light source. Understanding light distribution patterns is essential because it determines how well an area is illuminated, the uniformity of the lighting, and the amount of light pollution.
There are several elements that define a light distribution pattern:
- Beam Angle: This is the angle within which the majority of the light is emitted. A narrower beam angle means the light is concentrated in a smaller area, while a wider beam angle spreads the light over a larger area.
- Light Intensity: Measured in lux, it represents the amount of light that falls on a surface per unit area. Different applications require different levels of light intensity; for example, a busy street may need higher light intensity than a pedestrian pathway.
- Uniformity: Refers to how evenly the light is distributed across the illuminated area. High uniformity ensures that there are no dark spots or areas of excessive brightness, which can cause discomfort or safety hazards.
Common Light Distribution Patterns in Solar LED Light Poles
Type I Distribution
This pattern is characterized by a narrow, elongated beam that is ideal for linear applications such as roads, pathways, and corridors. The light is concentrated in a central band with minimal spillage to the sides. Solar LED light poles with Type I distribution are often used in situations where you need to illuminate a specific path or route. For example, a residential sidewalk would benefit from this type of distribution, as it provides focused lighting along the walking area while minimizing light pollution in adjacent gardens or properties. You can find suitable poles for such applications in our 10m 12m octagonal pole collection.
Type II Distribution
A broader version of Type I, Type II distribution has a wider beam that is still somewhat concentrated along the centerline but with more spread to the sides. It is commonly used for smaller roads, parking lots, and areas where a bit more lateral illumination is required. This pattern strikes a balance between focused lighting and wider coverage, making it a versatile choice for many outdoor lighting projects. Our Octagonal Pole For Street Light range can be equipped with fixtures featuring Type II distribution to meet these requirements effectively.
Type III Distribution
Type III distribution has a pronounced spread to the sides, with the light being strongest towards one side of the pole. It is often used to illuminate areas adjacent to the light pole, such as building facades, large parking lots, or sports fields. This pattern is useful when you need to direct light towards a specific area rather than just along a path. Solar LED light poles with Type III distribution can help highlight architectural features or ensure proper lighting for activities in large open spaces.
Type IV Distribution

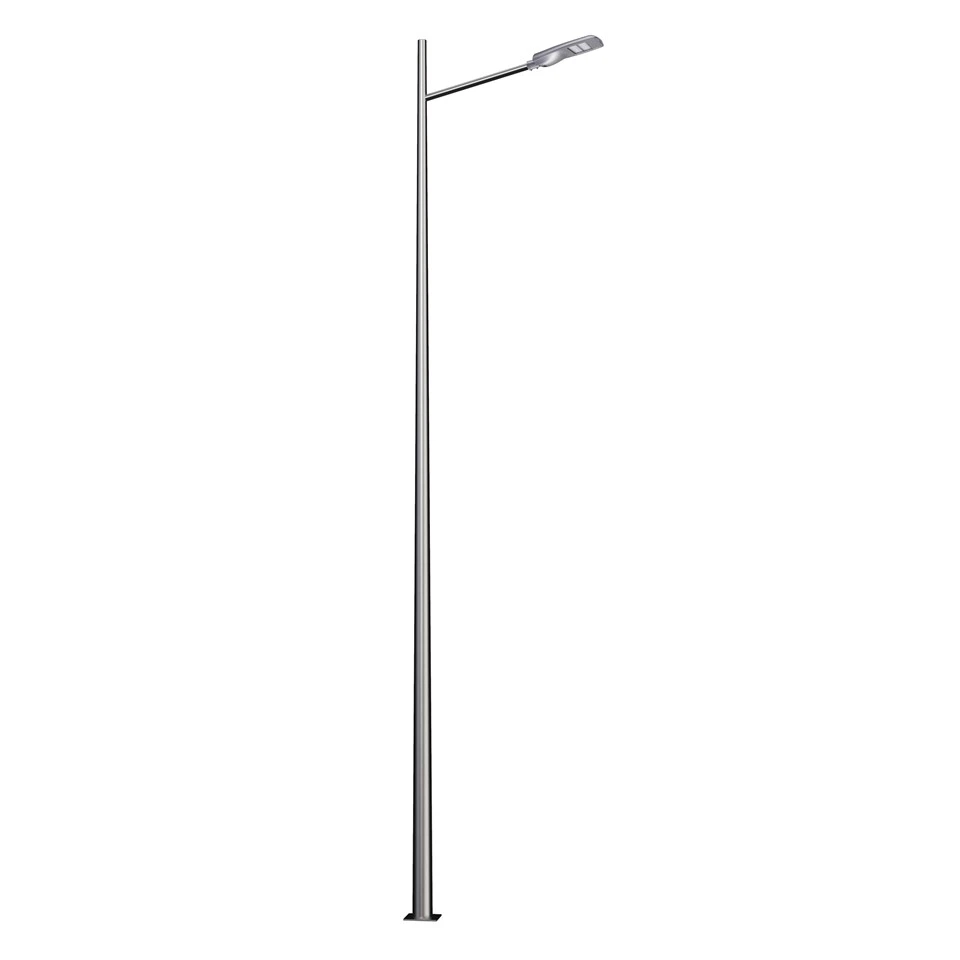

This pattern provides uniform illumination in a circular or square area around the light pole. It is suitable for small to medium-sized open areas, such as plazas, courtyards, and small parks. Type IV distribution ensures that there are no dark corners within the illuminated area, providing a well-lit and inviting environment. Our Solar Led Light With Pole options can be selected with Type IV distribution for these types of applications.
Factors Affecting Light Distribution Patterns
Fixture Design
The design of the LED fixture itself plays a significant role in determining the light distribution pattern. Reflectors, lenses, and diffusers are used to shape and control the direction of the light. For example, a well-designed reflector can focus the light into a specific beam angle, while a diffuser can help to spread the light more evenly.
Pole Height
The height of the solar LED light pole affects the area and intensity of the illumination. Taller poles generally provide a wider coverage area but may result in lower light intensity at the ground level. Conversely, shorter poles offer higher light intensity but cover a smaller area. It is important to choose the right pole height based on the desired light distribution pattern and the specific requirements of the application.
Location and Orientation
The location and orientation of the light pole also impact the light distribution. Factors such as the presence of nearby buildings, trees, or other obstructions can block or redirect the light. Additionally, the orientation of the pole must be considered to ensure that the light is projected in the right direction. For example, a pole installed near a corner may need to be angled differently to provide adequate lighting around the corner.
Importance of Light Distribution Patterns in Different Applications
Road Lighting
In road lighting, the correct light distribution pattern is crucial for safety and visibility. Type I or II distribution is commonly used to ensure that the road surface is well-lit for drivers and pedestrians. Uniform lighting reduces the risk of accidents by eliminating dark spots and providing clear visibility of road signs and markings.
Parking Lot Lighting
Parking lots require a combination of wide coverage and high uniformity to ensure the safety of vehicles and pedestrians. Type II or III distribution can be used to illuminate the parking spaces, aisles, and entrances effectively. Good lighting in parking lots also deters criminal activity by providing a well-lit environment.
Landscape Lighting
For landscape lighting, the focus is on creating an aesthetically pleasing and inviting atmosphere. Type IV distribution or custom patterns can be used to highlight trees, shrubs, and architectural features. Soft, diffused lighting can enhance the beauty of the landscape while minimizing light pollution.
Conclusion
The light distribution pattern of solar LED light poles is a critical factor that should be carefully considered when selecting lighting solutions for different applications. By understanding the various types of light distribution patterns, the factors that affect them, and their importance in different scenarios, you can make informed decisions to meet your specific lighting needs.
As a solar LED light pole supplier, we offer a wide range of products with different light distribution patterns to suit various requirements. Whether you need a pole with a Type I distribution for a road project or a Type IV distribution for a park, we have the expertise and products to provide you with the right solution.
If you're interested in learning more about our solar LED light poles or would like to discuss a specific project, we encourage you to contact us for a procurement discussion. Our team of experts is ready to assist you in finding the perfect lighting solution for your needs.
References
- IESNA Lighting Handbook, 9th Edition.
- CIE (International Commission on Illumination) Publications on Outdoor Lighting.
- LED Lighting Technology: A Guide for Municipalities and Lighting Professionals.
